Micro-convex probe: abdomen, obstetrics, cardiac
Linear probe: small organs, vascular, pediatrics, thyroid, breast, carotid artery
Convex probe: abdomen, gynecology, obstetrics, urology, kidney
Transvaginal probe: gynecology, obstetrics
Rectal Probe: andrology
Application: PU-L151A is used for the examination of abdomen, heart, gynecology, obstetrics, urology, small organs, pediatrics, blood vessels and other aspects, also widely used in small hospitals, clinics, community health centers and other places.
System Imaging Function:
1）Color Doppler Enhancement Technology;
2）Two-dimensional grayscale imaging;
3）Power Doppler imaging;
4）PHI pulse inverse phase tissue harmonic imaging + frequency composite technique;
5）With the working mode of spatial composite imaging;
6）Linear array probe independent deflection imaging technique;
7）Linear trapezoidal spread imaging;
8）B/Color/PW trisynchronous technology;
9）Multibeam parallel processing;
10）Speckle noise suppression technology;
11）Convex expansion imaging;
12）B-mode image enhancement technique;
13）Logiqview.
Input / output signal:
Input: Mquipped with digital signal interface;
Output: VGA, s-video,USB, audio interface, network interface;
Connectivity: Medical digital imaging and communications DICOM3.0 interface components;
Support network real-time transmission: can real-time transmission of user data to the server;
Image management and recording device: 500G hard disk Ultrasonic image archiving and medical record management function: complete;
The storage management and playback storage of patient static image and dynamic image in the host computer.
Rich data interface for data analysis:
1）VGA interface;
2）Printing interface;
3）Network interface;
4）SVIDEO interface;
5）Foot switch interface.
General system function:
1. Technology platform: linux +ARM+FPGA;

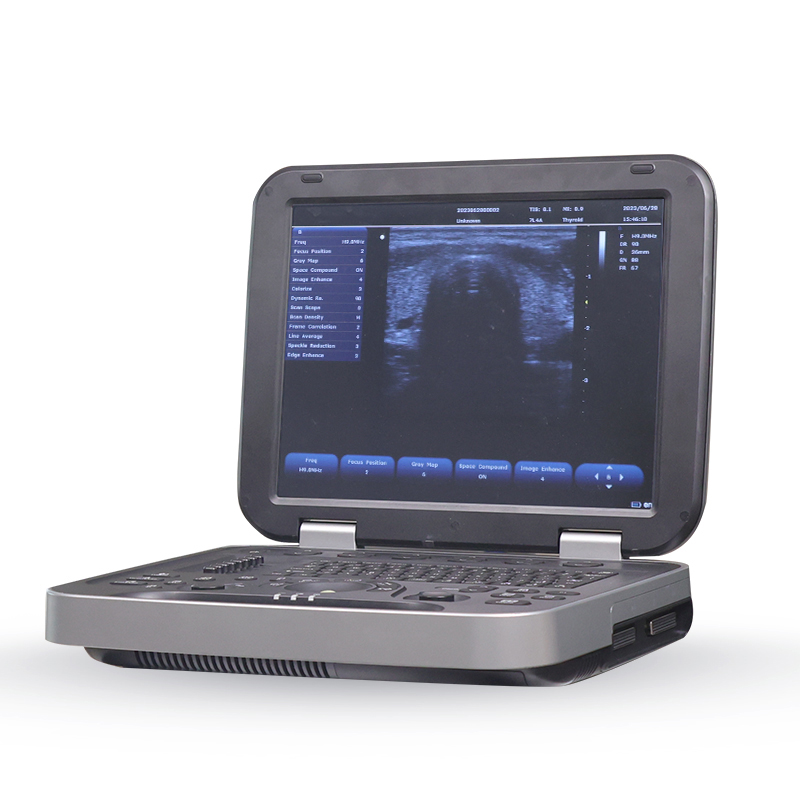

2. Color monitor: 15 ” high resolution color LCD monitor;
3. Probe interface: zero force metal body connector, effectively activated two mutual common interfaces;
4. Dual power supply system, built-in large capacity lithium battery, battery power 2 hours duration, and the screen provides power display information;
5. Support quick switch function, cold start 39 seconds;
6. Main interface miniature;
7. Built-in patient data management station;8. Customized comments: include insert, edit, save, etc.
Main technical parameters and functions
1.1 Technology platform:
linux + ARM + FPGA
1.2 Elements
Probe array elements：≥ 96
1.3 Probe available
3C6A: 3.5MHz / R60 / 96 array element convex probe;
7L4A: 7.5MHz / L38mm / 96 array array probe;
6C15A: 6.5MHz / R15 / 96 array element microconvex probe;
6E1A: 6.5MHz / R10 /96 array element Transvaginal probe;
Probe Frequency: 2.5-10MHz

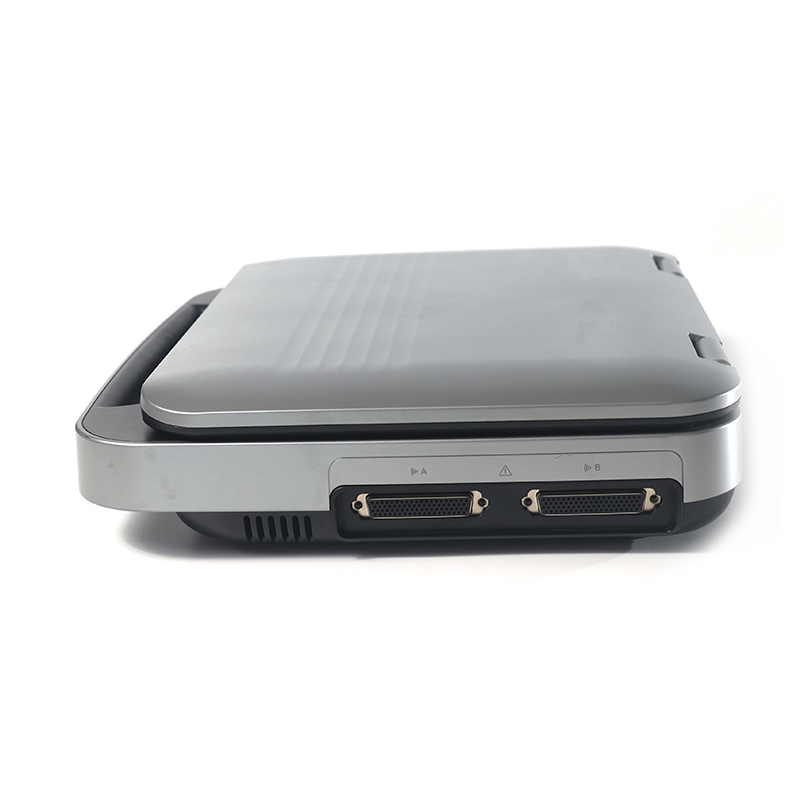

Probe socket: 2
1.4 Monitor
High-resolution 15-inch LCD display
1.5 Battery
Built-in 6000 mah lithium battery, working state, continuous working time for more than 1 hour, the screen provides power display information;
1.6 Built-in hard disk
Supports hard drives (128GB);
1.7 Peripheral interface support
Peripheral interface includes: network port, USB port (2), VGA / VIDEO / S-VIDEO, foot switch interface, support:
1.External display;
2.Video acquisition card;
3.Video printer: including black and white video printer, color video printer;
4.USB report printer: including black and white laser printer, color laser printer, color inkjet printer;
5.U disk, USB interface optical disc recorder, USB mouse;
6.foot pedal;
1.8 Machine size and weight
Host size: 370mm (length) 350mm (width) 60mm (thick)
Package size: 440mm (length) 440mm (width) 220mm (height)
Host weight: 6 kg, without probe and adapter;
Packaging weight: 10kg, (including main engine, adapter, two probes, packaging).
Measurement and calculation
1.B / C mode routine measurement: distance, area, perimeter, volume, angle, area ratio, distance ratio;
2.Routine measurement of M mode: time, slope, heart rate, and distance;
3.Routine measurement of Doppler mode: heart rate, flow rate, flow rate ratio, resistance index, beat index, manual / automatic envelope, acceleration, time, heart rate;

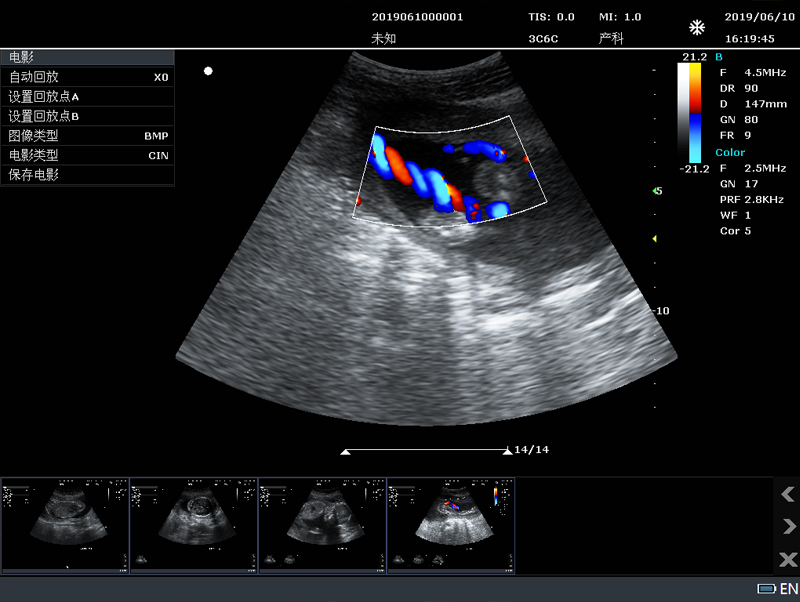

4.Obstetrics B, PW mode application measurement: including a comprehensive obstetric radial line measurement, body weight, singleton gestational age and growth curve, amniotic fluid index, fetal physiological score measurement, etc;
5.Gynecologic B mode for applied measurement;

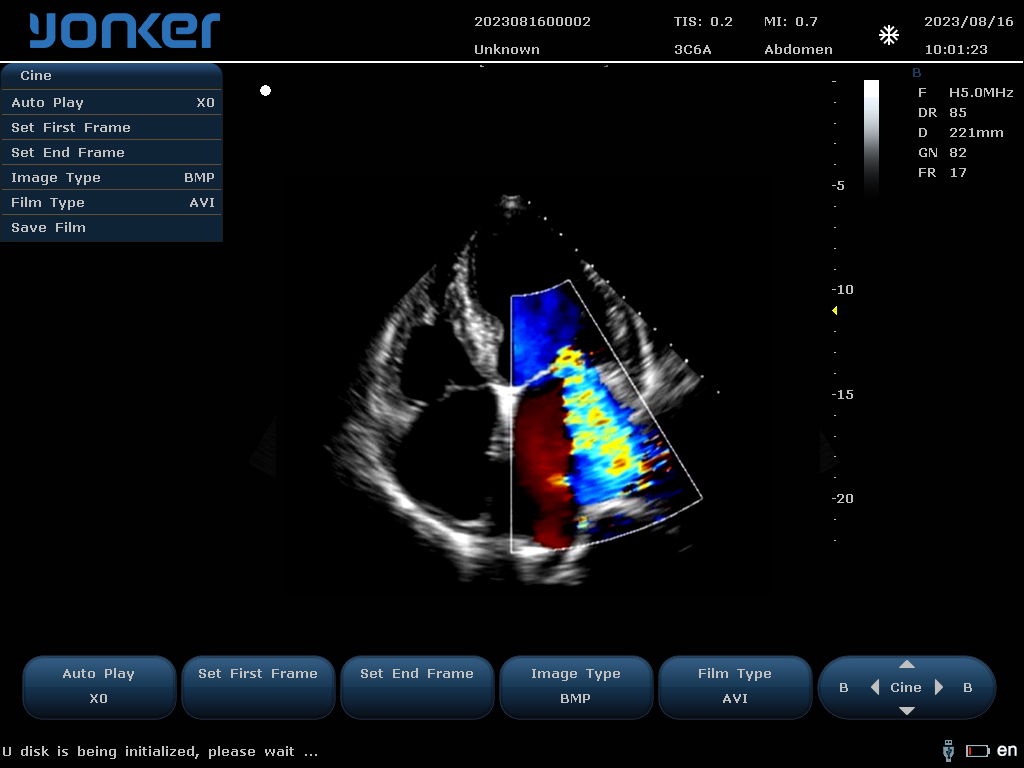

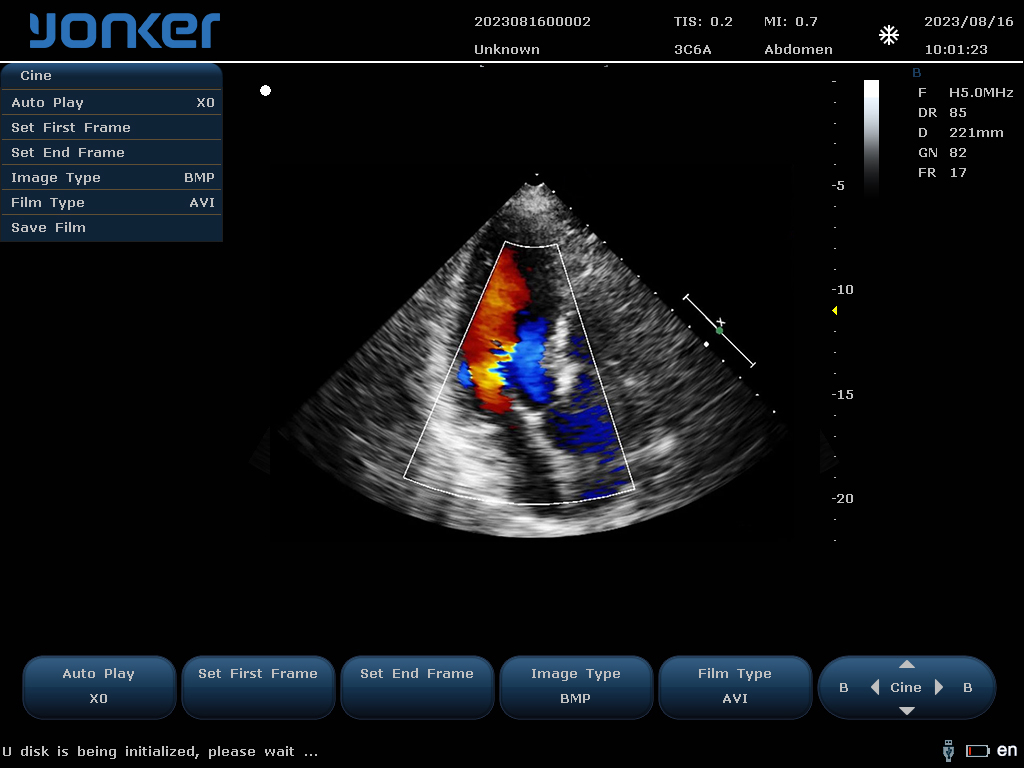

6.Cardiac B, M, and PW mode were applied for measurement;
7.Vascular B, PW mode application measurement, support: IMT automatic intima measurement;
8.Small organ B mode was applied measurement;
9.Urology B mode applied measurement;
10.Paediatric B mode application measurement;
11.Abdominal B mode application measurement.
Standard and optional accessories
standard accessories:
1.One main unit ( built-in 128G hard disk);
2.One 3C6A convex array probe;
3.Operator’s manual;
4.One power cable;
Optional accessories:
1. 6E1A Transvaginal probe;
2. 7L4A linear probe;
3. 6C15A microconvex probe;
4. The USB report printer;
5. Black and white video printer;
6. Color video printer;
7. The puncture frame;
8. Trolley;
9. Foot pedal;
10.U disk and USB extension line.
